Compromised Systems Intelligence: Botnet Infections

Ingrid

Botnet Infections indicates that devices on a company’s network are participating in a botnet (combination of “robot” and “network”), either as bots or as a command and control (C&C or C2) server.

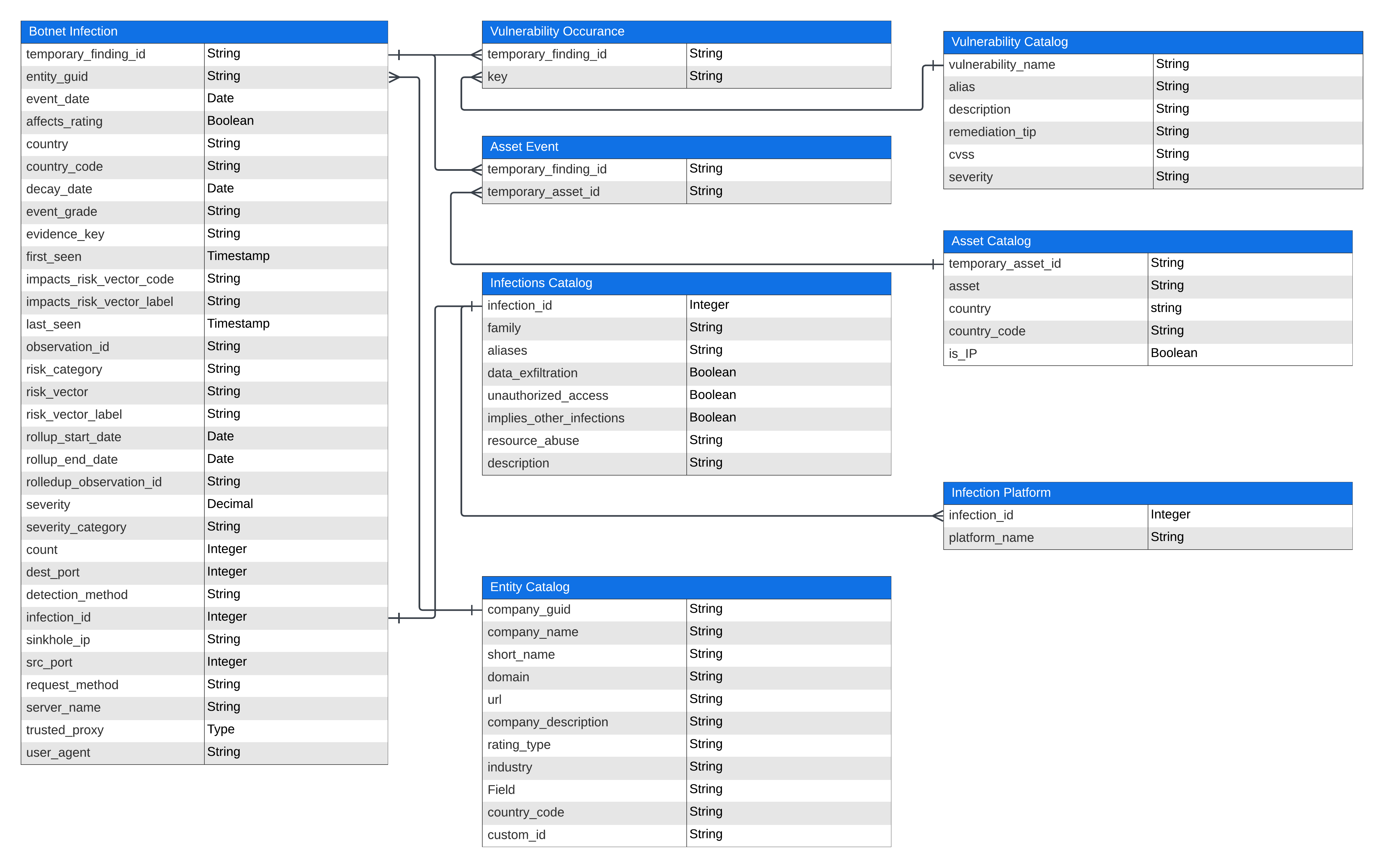

Data Structure Diagram

Data Solutions data feeds are optimized for relational databases. Refer to the structure conveyed in the following diagram to make the best use of entity relationships within the Botnet Infections Intelligence data feed:

Schema

Botnet Infections data available in Compromised Systems Intelligence:

Field	Description
temporary_finding_id String [`temp_finding_guid`]	The temporary unique identifier for this finding.
company_guid String [`entity_guid`]	The unique identifier of the company.
event_date String [`YYYY-MM-DD`]	When the finding was first observed.
affects_rating Boolean	`true` = This finding affects the rating.
country String	The country where the asset attributed with this finding is located.
country_code String	The country code where the asset attributed with this finding is located.
decay_date String [`YYYY-MM-DD`]	The date when this finding stops impacting the rating if nothing else changes.
event_grade String	The finding grade.
evidence_key String	The source of evidence for the finding. It may be from an IP address, domain, IP/domain combination, or port.
first_seen String [`YYYY-MM-DD HH:MM:SS`]	The first time the finding was observed.
impacts_risk_vector_code String	A reason code for why the finding does not impact on the rating.
last_seen String [`YYYY-MM-DD HH:MM:SS`]	The most recent time the finding was observed.
observation_id String	The unique identifier of this observation.
remediation_duration Integer	The number of days it took to remediate the finding.
risk_category String	The risk category.
risk_vector String	The risk vector slug name.
risk_vector_label String	The risk vector name.
rollup_start_date String [`YYYY-MM-DD`]	The date when this finding was first observed, which is used for determining the number of Compromised Systems events.
rollup_end_date String [`YYYY-MM-DD`]	The date when the infection was last observed, which is used for determining the number of Compromised Systems events.
rolledup_observation_id String	A stable and randomized identifier for findings. It is assigned to a finding when one or more observations with largely similar key properties occur in close succession.
severity Decimal	This finding’s Bitsight severity.
severity_category String	This finding’s Bitsight severity.
count Integer	The number of events. See event count considerations for Compromised Systems events.
dest_port Integer	A compromised device was observed to be sending traffic from this port.
detection_method String	The method used to detect the infection. See the data collection methods.
infection_id Integer	An identifier for the infection.
sinkhole_ip String	The masked destination IP address of the sinkhole.
src_port Integer	The port where traffic from a compromised device was observed.
request_method String	The HTTP request method used to communicate with the malware.
server_name String	The domain name of the affected server. It is known to be a command and control server, sinkhole, or is hosting adware.
trusted_proxy String	CIDR:Trusted Proxy
user_agent String	The `user-agent` string in the header, which identifies end-user interactions with web content. The details include the application, operating system, browser, and software version.

September 11, 2024: Published.
